Learning [ropls] for multivariate analysis and feature selection of omics data

r
pca
plsda
supervised
Author

Guorui Zhong

Published

Wednesday, July 5, 2023

PCA (also called eigenvector analysis) is unsupervised pattern recognition technique mostly utilized as data reduction and modelling technique. It determines the degree or extent to which variables are related. Large data of many variables are unavoidably superfluous and overlap, the use of correlation matrix generally quantifies these anomalies by extracting the eigenvalues and eigenvectors from the square matrix originated by multiplying the data matrix. The purpose of PCA is to find orthogonal variables that capture the maximum amount of variance in the data without considering class information. PCA provide the information about the relationships and patterns and help identify major sources of variation and potential outliers

PLS discriminant analysis is a supervised technique that uses the PLS algorithm to explain and predict the membership of observations to several classes using quantitative or qualitative explanatory variables or parameters. The purpose of PLS-DA is to identify the latent variables that maximize the discrimination between the predefined classes in the data. PLS-DA focus on the the separation of classes in the dataset and provide information on important features that serparate classes.

Packages and Data

pacman::p_load(ropls, tidyverse, ggsci)

### load data
data(sacurine)
names(sacurine)
[1] "dataMatrix"       "sampleMetadata"   "variableMetadata" "se"
[5] "eset"
attach(sacurine)
strF(dataMatrix)
       dim  class    mode typeof   size NAs  min mean median max
 183 x 109 matrix numeric double 0.2 Mb   0 -0.3  4.2    4.3   6
       (2-methoxyethoxy)propanoic acid isomer (gamma)Glu-Leu/Ile ...
HU_011                            3.019766011        3.888479324 ...
HU_014                             3.81433889        4.277148905 ...
...                                       ...                ... ...
HU_208                            3.748127215        4.523763202 ...
HU_209                            4.208859398        4.675880567 ...
       Valerylglycine isomer 2  Xanthosine
HU_011             3.889078716 4.075879575
HU_014             4.181765852 4.195761901
...                        ...         ...
HU_208             4.634338821 4.487781609
HU_209              4.47194762 4.222953354
strF(variableMetadata)
 msiLevel      hmdb chemicalClass
  numeric character     character
 nRow nCol size NAs
  109    3 0 Mb   0
                                       msiLevel      hmdb chemicalClass
(2-methoxyethoxy)propanoic acid isomer        2                  Organi
(gamma)Glu-Leu/Ile                            2                  AA-pep
...                                         ...       ...           ...
Valerylglycine isomer 2                       2           AA-pep:AcyGly
Xanthosine                                    1 HMDB00299        Nucleo
# View(dataMatrix)
# View(variableMetadata)
# View(sampleMetadata)

PCA

pca <- opls(dataMatrix)
PCA
183 samples x 109 variables
standard scaling of predictors
      R2X(cum) pre ort
Total    0.501   8   0

genderFc <- sampleMetadata[, "gender"]

plot(pca,
     typeVc = "x-score",
     parAsColFcVn = genderFc,
     parEllipsesL = TRUE
)

null device
          1
plot(pca,
     typeVc = "x-score",
     parAsColFcVn = genderFc,
     parLabVc = as.character(sampleMetadata[, "age"]),
     parPaletteVc = c("green4", "magenta"))
dev.off()
null device
          1

PLS-DA

### PLSDA analysis
plsda <- opls(dataMatrix, genderFc)
PLS-DA
183 samples x 109 variables and 1 response
standard scaling of predictors and response(s)
      R2X(cum) R2Y(cum) Q2(cum) RMSEE pre ort pR2Y  pQ2
Total    0.275     0.73   0.584 0.262   3   0 0.05 0.05

### sample scores plot
sample_score <- plsda@scoreMN |>
     as.data.frame() |>
     mutate(gender = sacurine[["sampleMetadata"]][["gender"]])
### plot
ggplot(sample_score, aes(x = p1, y = p2, color = gender)) +
    geom_hline(yintercept = 0, linetype = "dashed", linewidth = 0.5) +
    geom_vline(xintercept = 0, linetype = "dashed", linewidth = 0.5) +
    geom_point() +
    geom_point(aes(x = -10, y = -10), color = "white") +
    labs(x = "P1(10.0%)", y = "P2(9%)") +
    stat_ellipse(
        level = 0.95, linetype = "solid", size = 1, show.legend = FALSE
    ) +
    scale_color_manual(values = c("#3CB371", "#FF6347")) +
    theme_bw() +
    theme(
        legend.position = c(0.9, 0.8),
        legend.text = element_text(color = "black", size = 12, family = "Arial", face = "plain"),
        panel.background = element_blank(),
        panel.grid = element_blank(),
        axis.text = element_text(color = "black", size = 15, family = 'Arial', face = "plain"),
        axis.title = element_text(color = "black", size = 15, family = 'Arial', face = "plain"),
        axis.ticks = element_line(color = "black")
    )
Warning: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0.
ℹ Please use `linewidth` instead.

### find the discrinminative variable that VIP greater than 1

### VIP scores plot
vip_score <- as.data.frame(plsda@vipVn)
colnames(vip_score)  <- "vip"
vip_score$metabolites <- rownames(vip_score)
vip_score <- vip_score[order(-vip_score$vip), ]
vip_score$metabolites <- factor(
    vip_score$metabolites, levels = vip_score$metabolites)
loading_score <- plsda@loadingMN |>
    as.data.frame()
loading_score$metabolites <- rownames(loading_score)
all_score <- merge(vip_score, loading_score, by = "metabolites")
all_score$cat <- paste("feature", 1:nrow(all_score), sep = "")

### plot
ggplot(all_score[all_score$vip >=1, ], aes(x = cat, y = vip)) +
    geom_segment(aes(x = cat, xend = cat,
                    y = 0, yend = vip)) +
    geom_point(shape = 21, size = 5, color = "#008000", fill = "#008000")+
    geom_point(aes(1, 2.5), color = "white") +
    geom_hline(yintercept = 1, linetype = "dashed") +
    scale_y_continuous(expand = c(0, 0)) +
    labs(x = "", y = "VIP value") +
    theme_bw() +
    theme(
        legend.position = "none",
        legend.text = element_text(color = "black", size = 12, family = "Arial", face = "plain"),
        panel.background = element_blank(),
        panel.grid = element_blank(),
        axis.text = element_text(color = "black", size = 15, family = 'Arial', face = "plain"),
        axis.text.x = element_text(angle = 90),
        axis.title = element_text(color = "black", size = 15, family = 'Arial', face = "plain"),
        axis.ticks = element_line(color = "black"),
        axis.ticks.x = element_blank()
    )

OPLS-DA

### OPLS-DA analysis
oplsda <- opls(dataMatrix, genderFc, predI = 1, orthoI = NA)
OPLS-DA
183 samples x 109 variables and 1 response
standard scaling of predictors and response(s)
      R2X(cum) R2Y(cum) Q2(cum) RMSEE pre ort pR2Y  pQ2
Total    0.275     0.73   0.602 0.262   1   2 0.05 0.05

### sample scores plot
sample_score <- oplsda@scoreMN |>
    as.data.frame() |>
    mutate(
        gender = sacurine[["sampleMetadata"]][["gender"]],
        o1 = oplsda@orthoScoreMN[, 1]
    )
### plot
ggplot(sample_score, aes(p1, o1, color = gender)) +
  geom_hline(yintercept = 0, linetype = "dashed", size = 0.5) +
  geom_vline(xintercept = 0, linetype = "dashed", size = 0.5) +
  geom_point() +
  #geom_point(aes(-10,-10), color = 'white') +
  labs(x = "P1(5.0%)", y = "to1") +
  stat_ellipse(level = 0.95, linetype = "solid",
               size = 1, show.legend = FALSE) +
  scale_color_manual(values = c("#3CB371", "#FF6347")) +
  theme_bw() +
  theme(legend.position = c(0.1, 0.85),
        legend.title = element_blank(),
        legend.text = element_text(color = "black", size = 12, family = "Arial",
            face = "plain"),
        panel.background = element_blank(),
        panel.grid = element_blank(),
        axis.text = element_text(color = "black", size = 15, family = "Arial", face = "plain"),
        axis.title = element_text(color = "black", size = 15, family = "Arial", face = "plain"),
        axis.ticks = element_line(color = 'black'))

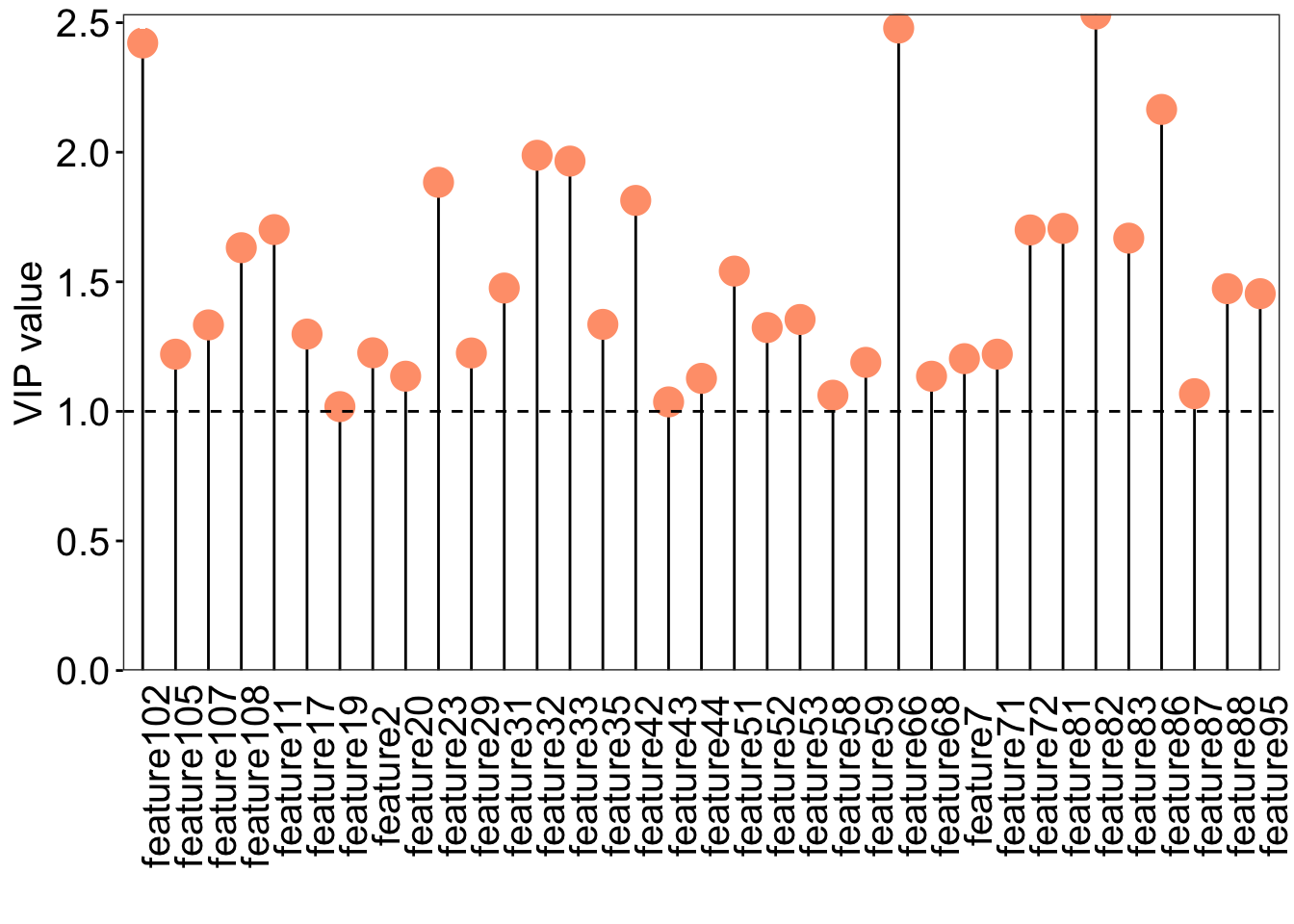

### VIP scores plot
vip_score <- as.data.frame(oplsda@vipVn)
colnames(vip_score)  <- "vip"
vip_score$metabolites <- rownames(vip_score)
vip_score <- vip_score[order(-vip_score$vip), ]
vip_score$metabolites <- factor(
    vip_score$metabolites, levels = vip_score$metabolites)
loading_score <- oplsda@loadingMN |>
    as.data.frame()
loading_score$metabolites <- rownames(loading_score)
all_score <- merge(vip_score, loading_score, by = "metabolites")
all_score$cat <- paste("feature", 1:nrow(all_score), sep = "")

### plot
ggplot(all_score[all_score$vip >=1, ], aes(x = cat, y = vip)) +
    geom_segment(aes(x = cat, xend = cat,
                    y = 0, yend = vip)) +
    geom_point(shape = 21, size = 5, color = "#FFA07A", fill = "#FFA07A")+
    geom_point(aes(1, 2.5), color = "white") +
    geom_hline(yintercept = 1, linetype = "dashed") +
    scale_y_continuous(expand = c(0, 0)) +
    labs(x = "", y = "VIP value") +
    theme_bw() +
    theme(
        legend.position = "none",
        legend.text = element_text(color = "black", size = 12, family = "Arial", face = "plain"),
        panel.background = element_blank(),
        panel.grid = element_blank(),
        axis.text = element_text(color = "black", size = 15, family = 'Arial', face = "plain"),
        axis.text.x = element_text(angle = 90),
        axis.title = element_text(color = "black", size = 15, family = 'Arial', face = "plain"),
        axis.ticks = element_line(color = "black"),
        axis.ticks.x = element_blank()
    )

Predict models

### OPLS-DA model training
oplsda.2  <-  opls(dataMatrix, genderFc, predI = 1, orthoI = NA,subset = "odd")
Warning: 'permI' set to 0 because train/test partition is selected
OPLS-DA
92 samples x 109 variables and 1 response
standard scaling of predictors and response(s)
      R2X(cum) R2Y(cum) Q2(cum) RMSEE RMSEP pre ort
Total     0.26    0.825   0.608 0.213 0.341   1   2

### training dataset  accuracy
trainVi  <-  getSubsetVi(oplsda.2)
tab  <-  table(genderFc[trainVi], fitted(oplsda.2))
print(paste("model accuracy：", round(sum(diag(tab))/sum(tab)*100, 2), "%", sep = ""))
[1] "model accuracy：100%"
### testing dataset accuracy
tab2  <-  table(genderFc[-trainVi], predict(oplsda.2, dataMatrix[-trainVi, ]))
print(paste("model accuracy：", round(sum(diag(tab2))/sum(tab2)*100, 2),'%', sep = ''))
[1] "model accuracy：84.62%"

Other

# volcano plot
df  <-  dataMatrix %>% as.data.frame()
df$gender  <-  sacurine[["sampleMetadata"]][["gender"]]
df  <-  df[order(df$gender), ]
df  <-  df[,-110]

M.mean  <-  apply(df[1:100,], 2, FUN = mean)
F.mean  <-  apply(df[101:183,], 2, FUN = mean)

FC  <-  M.mean / F.mean
log2FC  <-  log(FC, 2)

pvalue  <-  apply(df, 2, function(x) {t.test(x[1:100],x[101:183])$p.value})

p.adj  <-  p.adjust(pvalue, method = 'BH')
p.adj.log  <-  -log10(p.adj)

colcano.df  <-  data.frame(log2FC, p.adj, p.adj.log)
colcano.df$cat  <-  ifelse(colcano.df$log2FC >= 1 & colcano.df$p.adj < 0.05, "Up",
                        ifelse(colcano.df$log2FC <= -1 & colcano.df$p.adj < 0.05, "Down","NS"))

ggplot(colcano.df, aes(log2FC, p.adj.log)) +
    geom_point(colour = "#A9A9A9", size = 1) +
    labs(y = "-log10(p-value.adj)") +
    theme_bw() +
    scale_x_continuous(limits = c(-2, 2)) +
    theme(legend.position = 'none',
        legend.text = element_text(color = 'black', size = 12, family = 'Arial', face = 'plain'),
        panel.background = element_blank(),
        panel.grid = element_blank(),
        axis.text = element_text(color = 'black', size = 15, family = 'Arial', face = 'plain'),
        axis.text.x = element_text(angle = 90),
        axis.title = element_text(color = 'black', size = 15, family = 'Arial', face = 'plain'),
        axis.ticks = element_line(color = 'black'),
        axis.ticks.x = element_blank())
